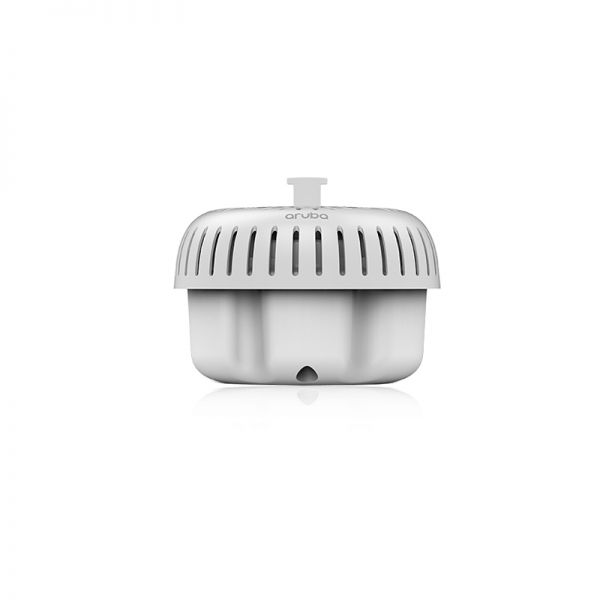

Aruba AP-575 (RW) 802.11ax 2×2:2/4×4:4 Dual Radio Integrated Omni Antenna Outdoor AP
R4H17A Specification |
|
|
Ports |
(1) HPE SmartRate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications (1) 10/100/1000BASE-T (RJ-45) port, auto-sensing link speed and MDI/MDX |
|
Mounting |
Not included. Choose AP-270-MNT-V1, AP-270-MNT-V2, AP-270-MNT-H1, AP-270-MNT-H2 |
|
Input voltage |
IEEE 802.3at PoE, or direct DC power (via optional power supply) |
|
Power Consumption |
25.6W, max (AP only) |
|
Certifications |
CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi CERTIFIED™ 6 (802.11ax) Wi-Fi CERTIFIED™ ac (with Wave 2 features) Passpoint® (Release 2) with ArubaOS and Instant |
|
Regulatory |
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU UL/IEC/EN 60950 EN 60601-1-1, EN60601-1-2 |
|
Wi-Fi antenna |
Built-in omni-directional antennas: 5 GHz (4.6 dBi), 2.4 GHz (4.0 dBi) |
|
Radio coverage |
Outdoor-hardened, Wi-Fi 6 dual radio, 5 GHz 4×4 MIMO and 2.4 GHz 2×2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) Maximum data rates of 4.8 Gbps in the 5GHz band and 575 Mbps in the 2.4GHz band |
|
Product Dimensions (imperial) |
10.6 x 9.0 x 9.4 in (H x W x D) |
